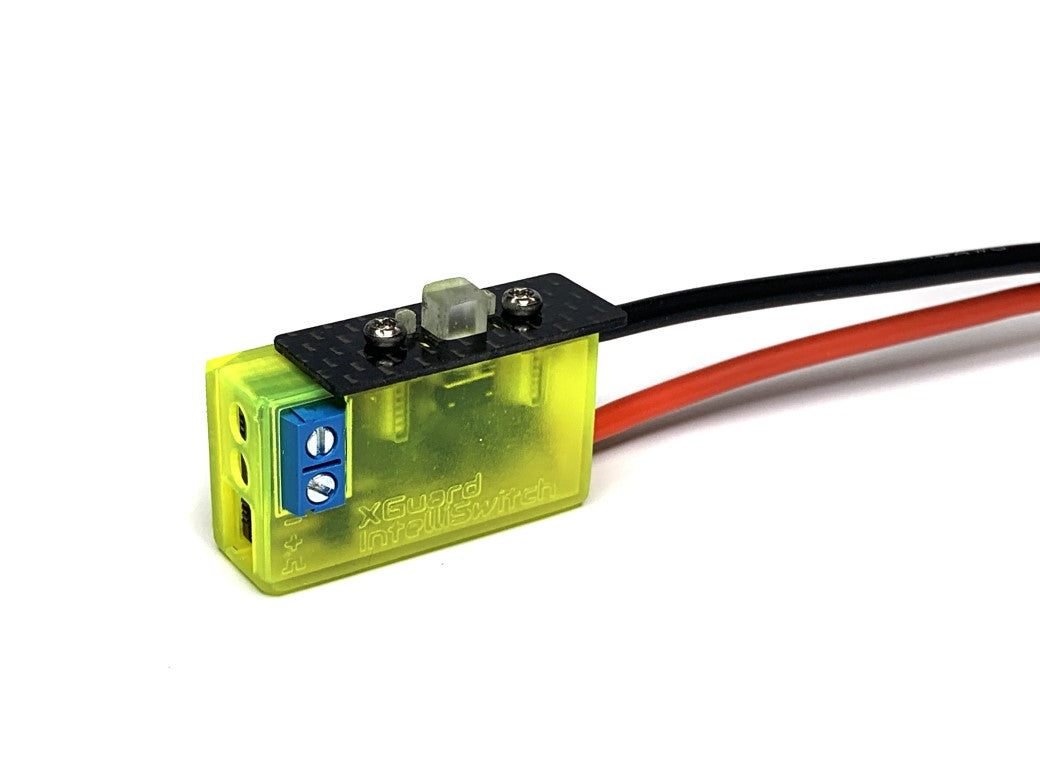

XGuard IntelliSwitch intelligent switch with dual solid state relay and aircraft locator buzzer
XGuard IntelliSwitch intelligent switch with dual solid state relay and aircraft locator buzzer
XGuard IntelliSwitch intelligent switch with dual solid state relay and aircraft locator buzzer
XGuard IntelliSwitch intelligent switch with dual solid state relay and aircraft locator buzzer
XGuard IntelliSwitch intelligent switch with dual solid state relay and aircraft locator buzzer

XGuard IntelliSwitch intelligent switch with dual solid state relay and aircraft locator buzzer

$39.95
SKU: AAVXG0270
Quantity:

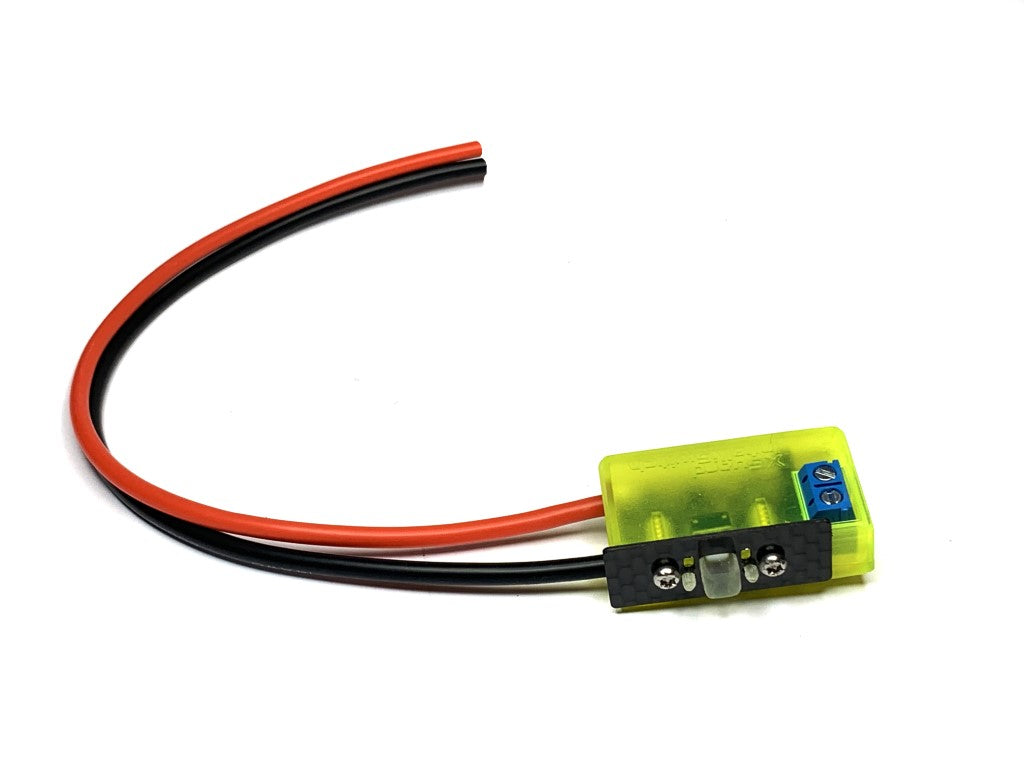

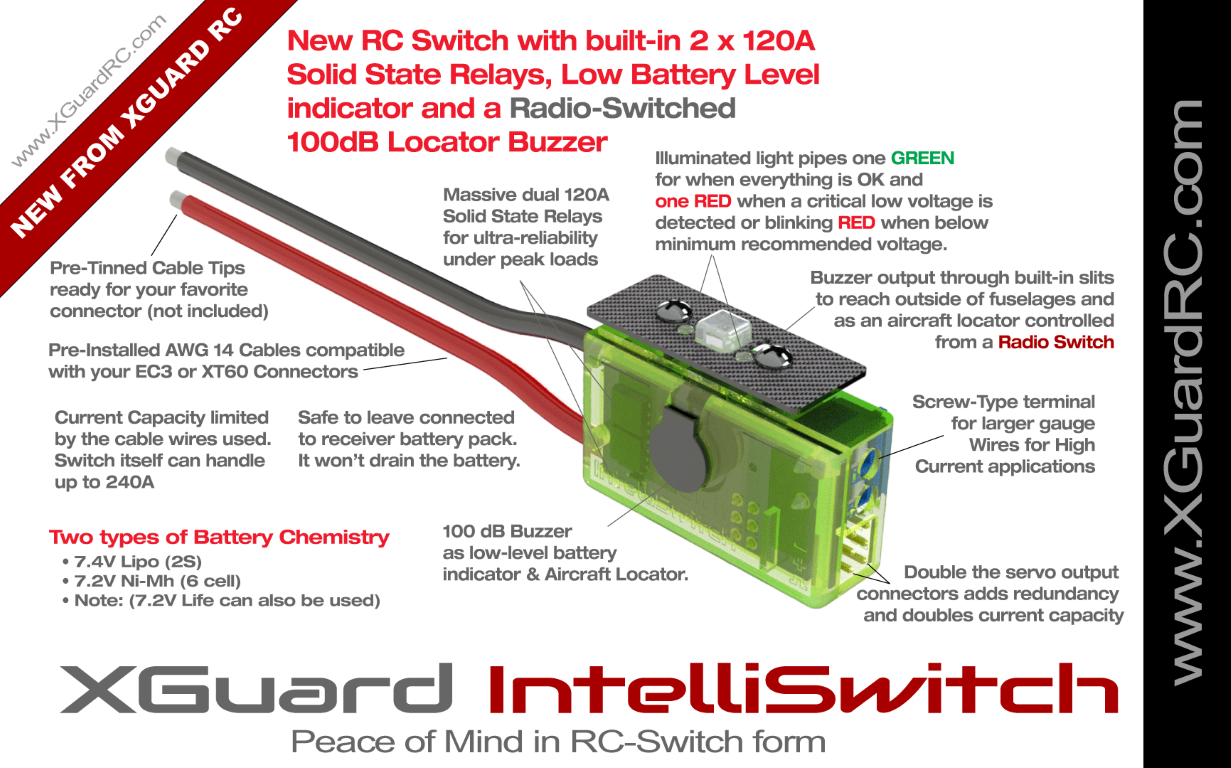

XGuard IntelliSwitch – Switch with dual solid state relay and aircraft locator buzzer

Massive dual Solid State Relays for ultra-reliability under peak loads and redundancy safety.

Current Capacity limited by the cable wires used.

Pre-Installed AWG 14 Cables compatible with your EC3 or XT60 Connectors

Illuminated light pipes one GREEN for when everything is OK and one RED when a critical low voltage is detected or blinking RED when below minimum recommended voltage.

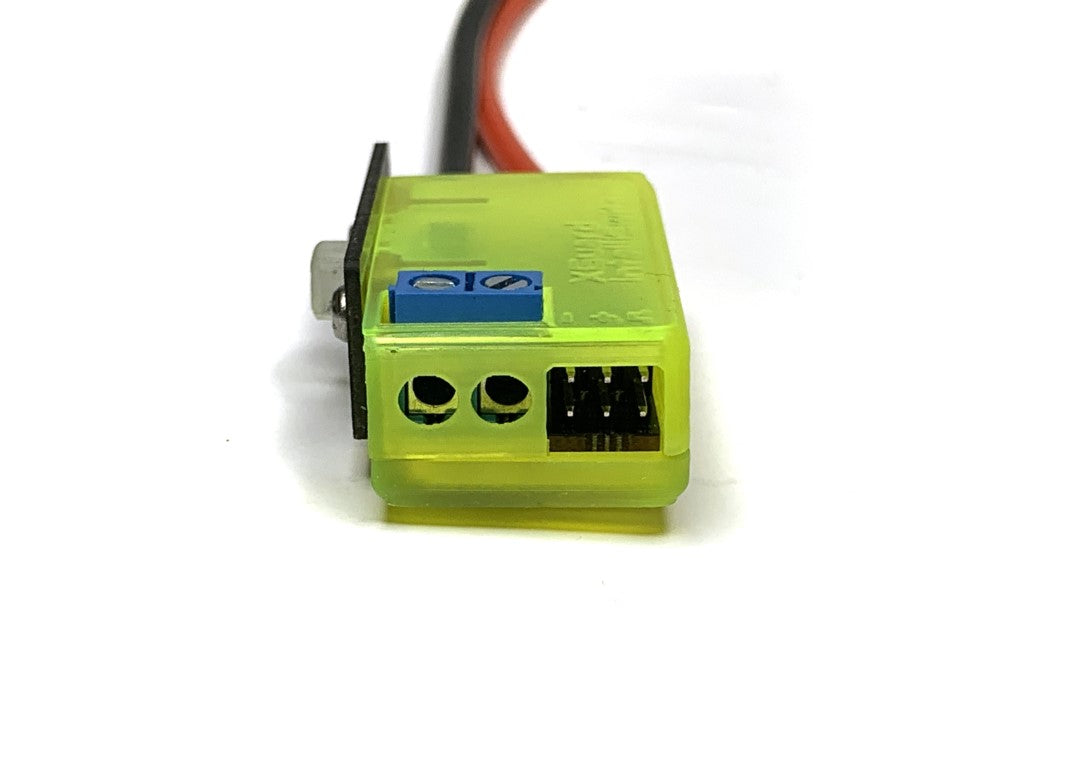

Screw-Type terminal for larger gauge Wires for High-Current applications.

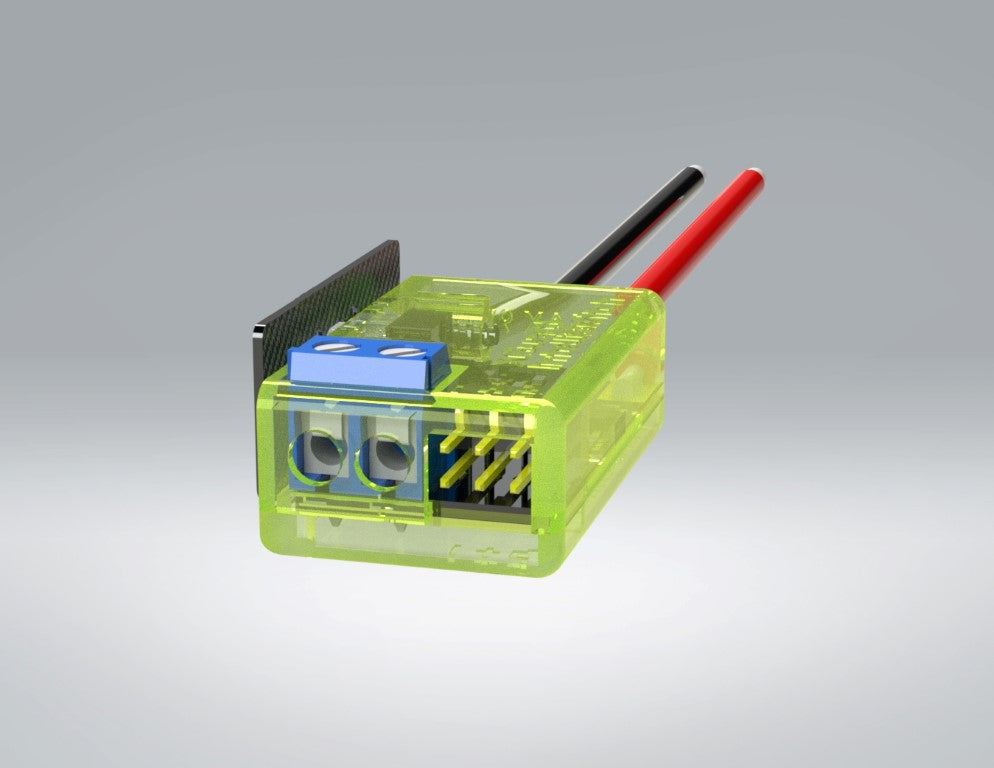

Double the servo output connectors adds redundancy and doubles current capacity

100 dB Buzzer as low-level battery indicator & Aircraft Locator.

Two types of Battery Chemistry
• 7.4V Lipo (2S)
• 7.2V Ni-Mh (6 cell)
• Note: (LiFe packs can also be used but it will only warn if voltage drops below 6.2V)

WEIGHT:

Switch itself without wires:…………………..12.2 grams (0.43 oz)
Pair of 8 inch 14 AWG wires:……………….10.9 grams (0.38 oz)
Unit with wires:…………………………………..23.1 grams (0.81 oz)
(Note: Wires can be shortened to match your specific need)
