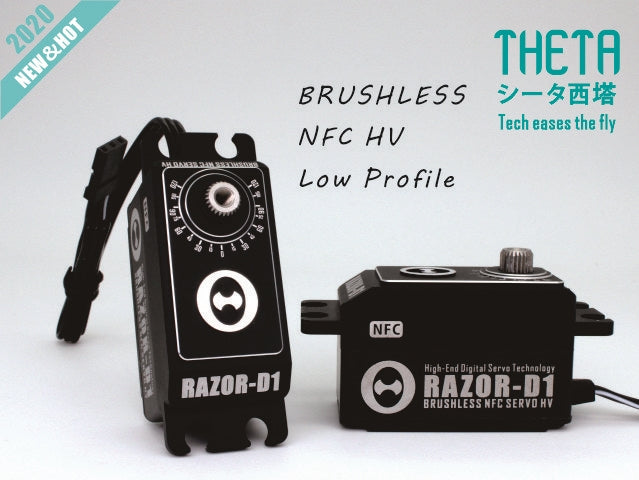

THETA Razor-D1 NFC HV Low Profile Brushless Servo
THETA Razor-D1 NFC HV Low Profile Brushless Servo

THETA Razor-D1 NFC HV Low Profile Brushless Servo

Sale price$109.99
SKU: TS-RD1
Quantity:

High voltage, High-Torque, low profile size brushless servo. Ideal for small machines requiring full size servos, but where weight is a concern, such as 500-600 helis. Suitable for 1/10 scale vehicles.

The Theta servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!

  • High Voltage
  • High Speed
  • Excellent Centering
  • Compatible with Futaba type horns/arms
  • Fully programmable via NFC enabled Android smart phones
  • Light Weight

Voltage(V)

Current(A)

Speed (s/60°)

Torque (kg*cm)

5.0

3.0

0.108

12

6.0

3.0

0.09

13.5

7.4

3.0

0.08

15

8.4

3.0

0.07

16





5.0

5.0

0.092

14

6.0

5.0

0.081

15.5

7.4

5.0

0.072

18

8.4

5.0

0.063

20
