Scorpion Tribunus III 06-110 ESC SBEC
Specifications
- Max Continuous Current 110 Amps
- Peak Current 150 Amps
- Operating Voltage Range 11-26.1 Volts
- BEC Output voltage: 5.1V to 12.1V adjustable
- Max Continuous BEC Output 10 Amps @ 8.1 V
- Peak BEC Output 20 Amps/1s @ 8.1 V
- On Resistance 0.45mohms * 2
- ESC Body Size 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in)
- Mounting Tab Dimensions 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt
- Weight (Without Connectors) 105g ( 3.70oz)
- Drive frequency 8kHz - 32kHz

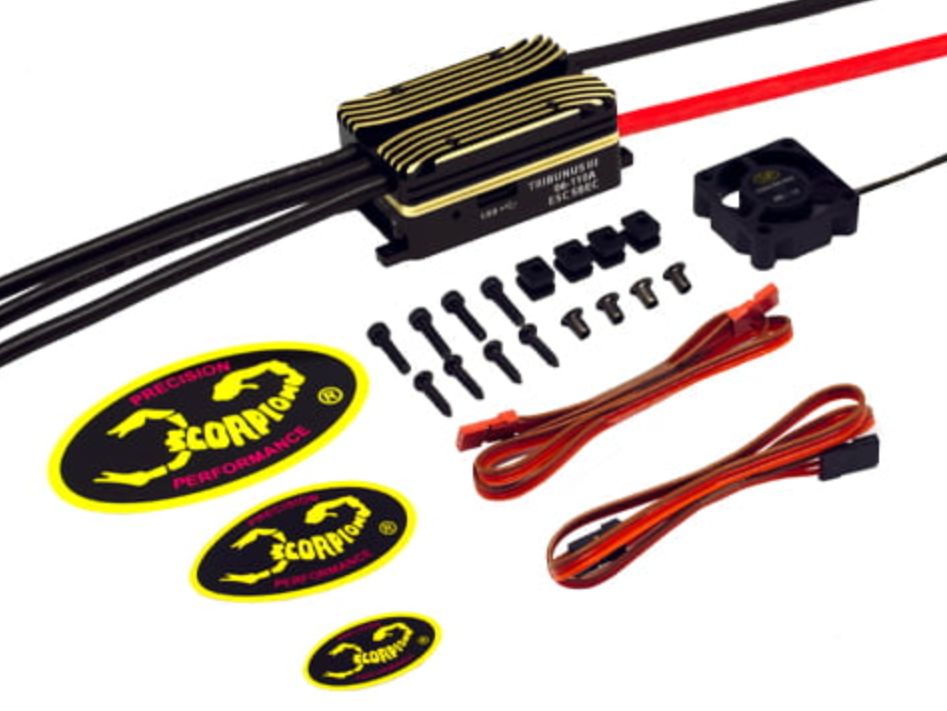

Included in the Box

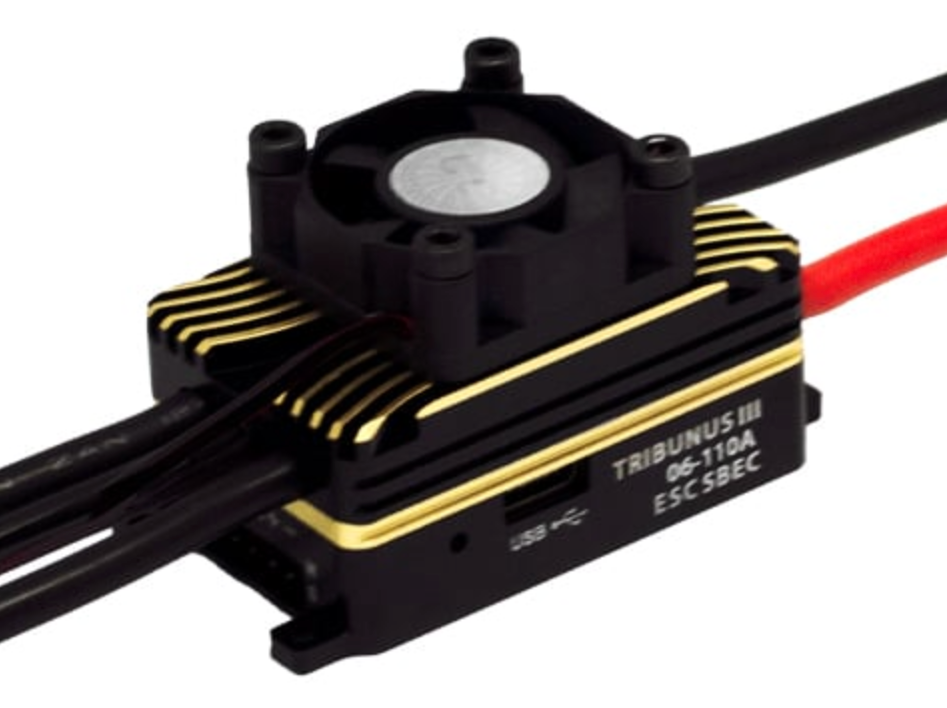

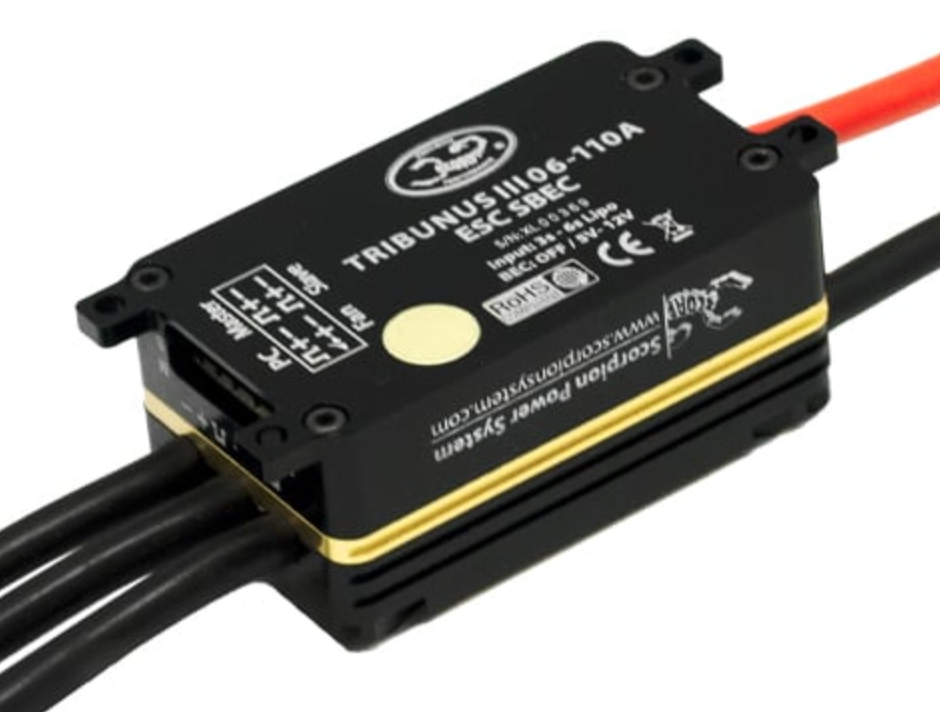

1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
