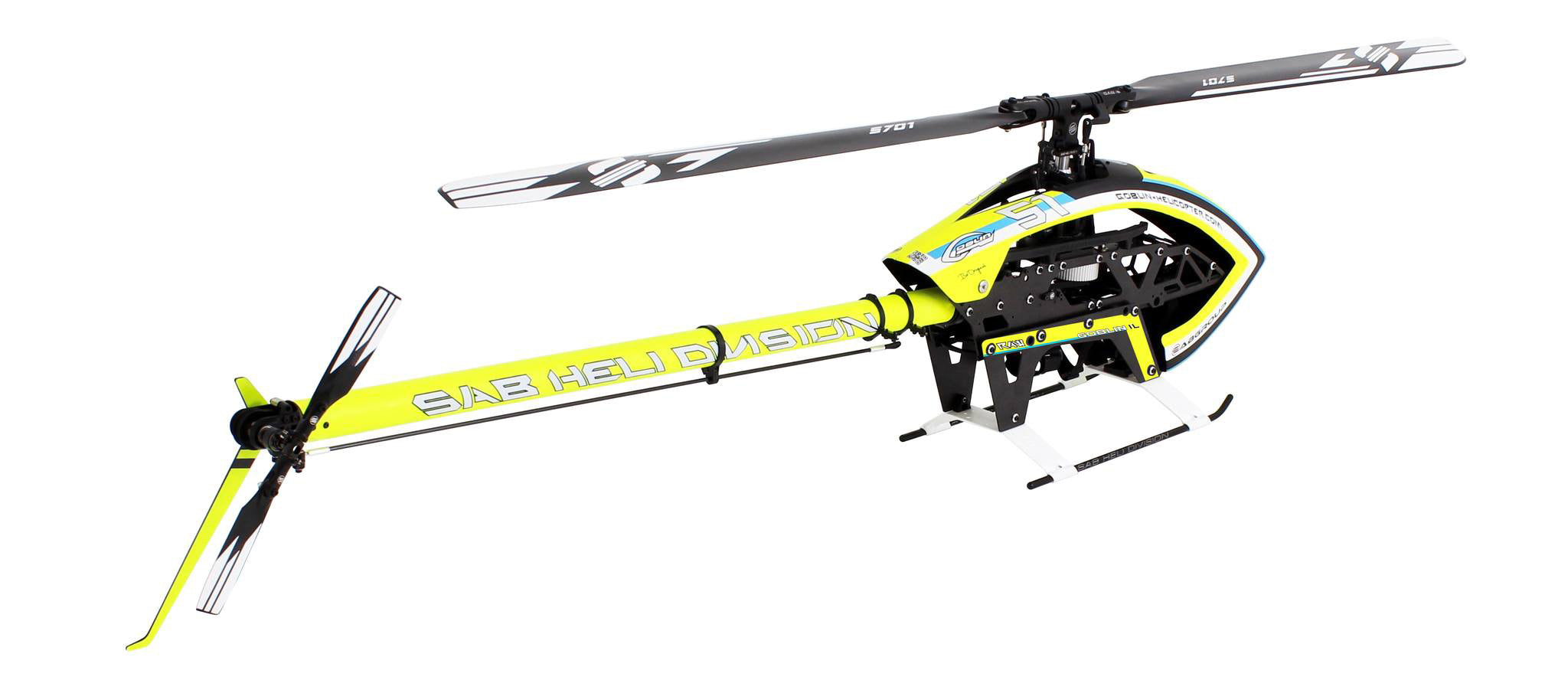

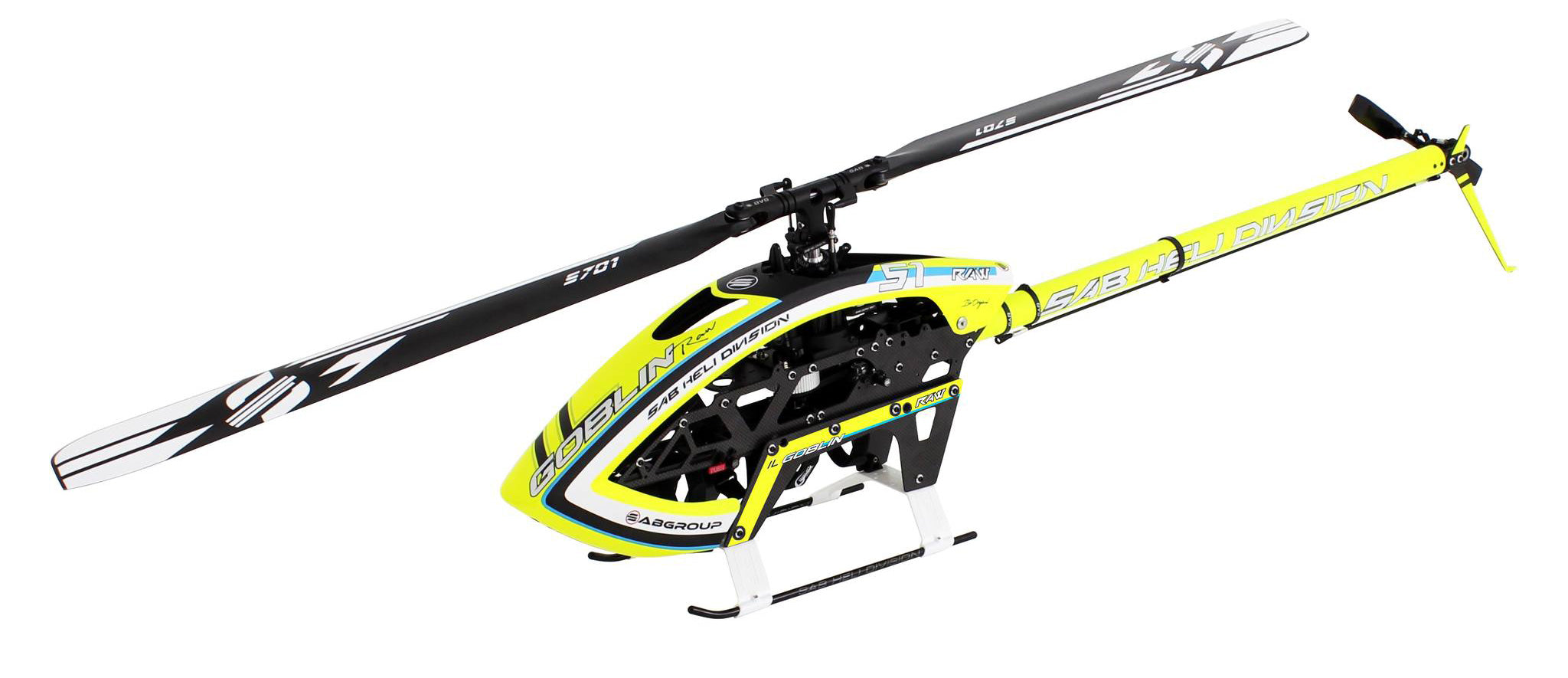

SAB ilGoblin 700 Raw (Yellow)
The latest and greatest flagship model from SAB. The ILGoblin Raw represents a significant technological advancement in RC helicopters, with a complete redesign compared to previous models. Here are the main innovations:
Main transmission:
- The main transmission is based on the Goblin gearbox, now further improved
- The main shaft diameter is now 15 mm for increased rigidity
- New helical gears for increased durability and strength
- New One-Way system, redesigned for optimal performance
- A fast disassembly servo mount that allows for easier and faster maintenance
- The new gearbox is lighter than previous models
Rotor head:
- New design that features new blade grip arms with an improved locking system
- Self-Centering Titanium washers that ensure automatic centering for greater precision
- Pivot shaft for the spindle allowing customization of rigidity and maximum movement
Tail rotor:
- 8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail
- The shaft and the hub are made from a single part in order to have maximum precision
- The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preference
Specs:
- Airframe weight: 2122 gr (no blades, no battery, no electronics)
- Main rotor diameter: 1576 mm (with 700 mm blades)
- Main blade length: 650 to 730 mm
- Tail rotor diameter: 292 mm (with 110 mm tail blades)
- Tail blade length: 105 to 115 mm
- Cyclic Servos: Standard size 40 mm
- Tail Servo: Standard size 40 mm
- Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
- Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
- Main shaft 15 mm, Tail shaft 8 mm
- Aluminum tail boom • Motor 12S, 480/560 KV
- Battery room: 50x60x300 mm
Kit Includes:
- 21T motor pulley (other pulley sizes available)
- 1 battery tray with straps
- S701 (700 mm main blades)
- S105 (110 mm tail blades)
