SAB Genesis Sport
The Genesis sport is the latest and greatest sport flying / F3C machine from SAB. By sharing a considerable amount of parts with its sister ship, the ilGoblin Pro, the new Genesis sport is an unbeatable deal for those who prefer a larger, more stable machine with very large blades and excellent sport, precision or mild 3D flying characteristics.
The Genesis sport is based on the ilGoblin mechanical design resenting significant technological advancements in RC helicopters.

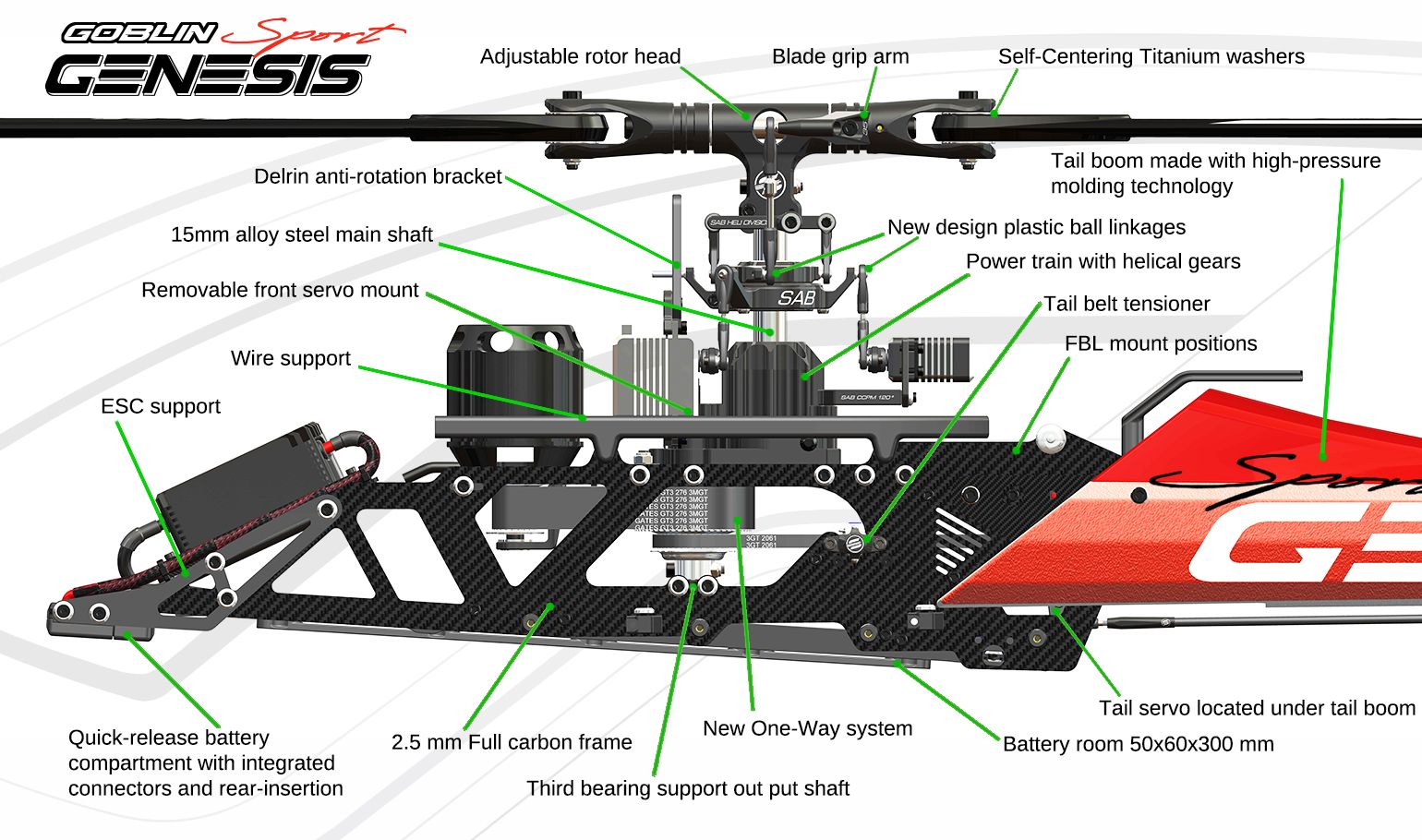

Main transmission:
- The main transmission is based on the Goblin gearbox, now further improved
- The main shaft diameter is now 15 mm for increased rigidity
- New helical gears for increased durability and strength
- New One-Way system, redesigned for optimal performance
- A fast disassembly servo mount that allows for easier and faster maintenance
- The new gearbox is lighter than previous models

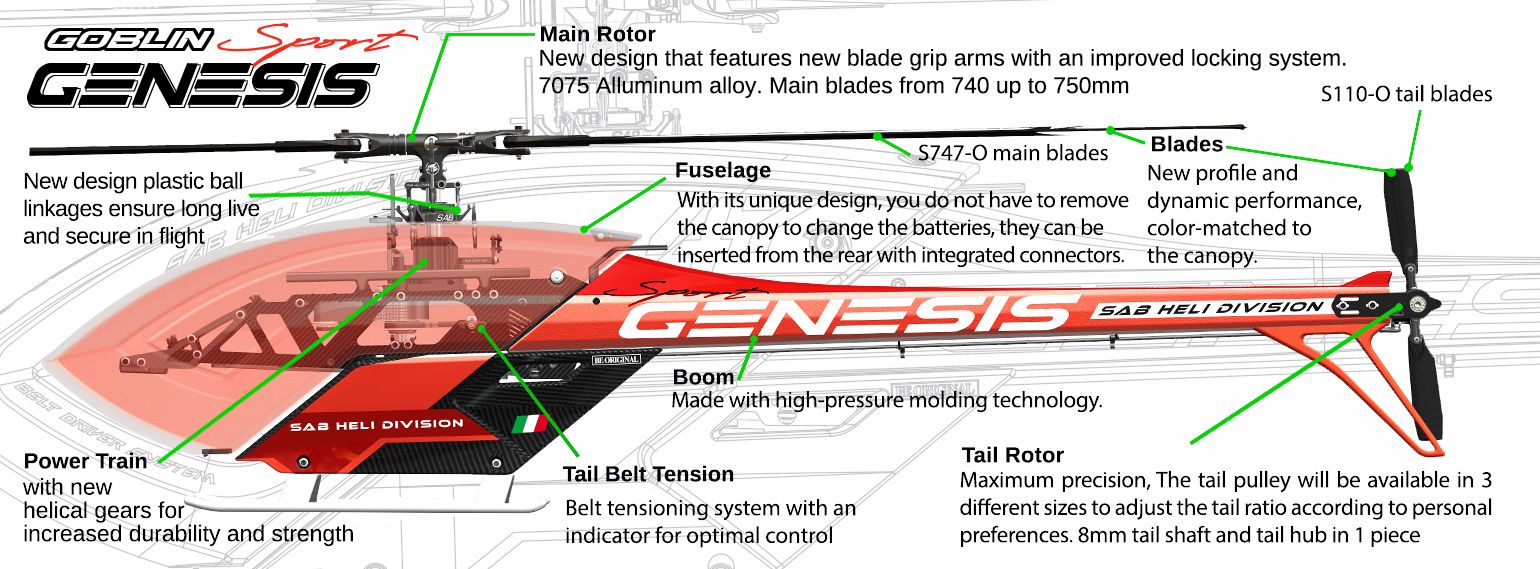

Rotor head:
- New design that features new blade grip arms with an improved locking system
- Self-Centering Titanium washers that ensure automatic centering for greater precision
- Pivot shaft for the spindle allowing customization of rigidity and maximum movement
Tail rotor:
- 8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail
- The shaft and the hub are made from a single part in order to have maximum precision
- Upgraded tail slider for improved tail precision.
- The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preference
Canopy and blades:
- Batteries can be installed from the rear with quick connectors eliminating the need to remove the canopy.
- The blades in the kit are the new S747, with new profile and dynamic performance, color-matched to the canopy
- The tail blades are S110 with a new design for improved performance.
