$58.99
SKU: HP0157.0113-GRY

Price match guarantee!

Color:Grey
Quantity:

This is the latest and greatest flight controller from Radio Master RC. Watch the video for more information.

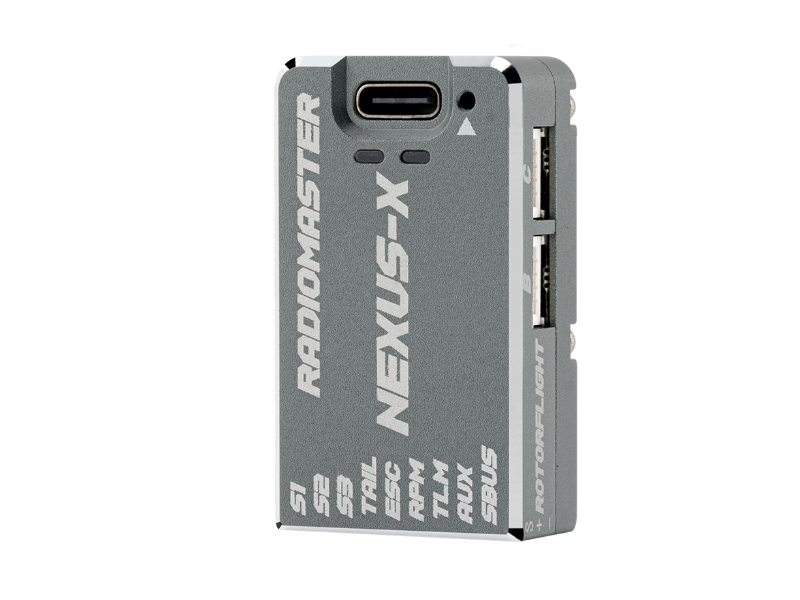

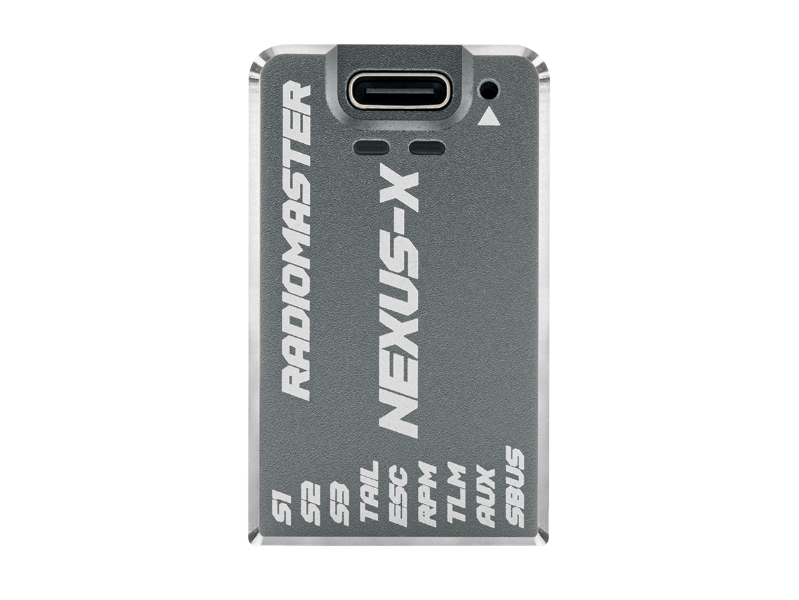

Nexus-X Helicopter Flight Controller:

  • Firmware: Rotorflight 2.2
  • MCU: STM32F722RET6
  • Gyro (IMU): ICM42688P
  • Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
  • Barometer: SPL06-001

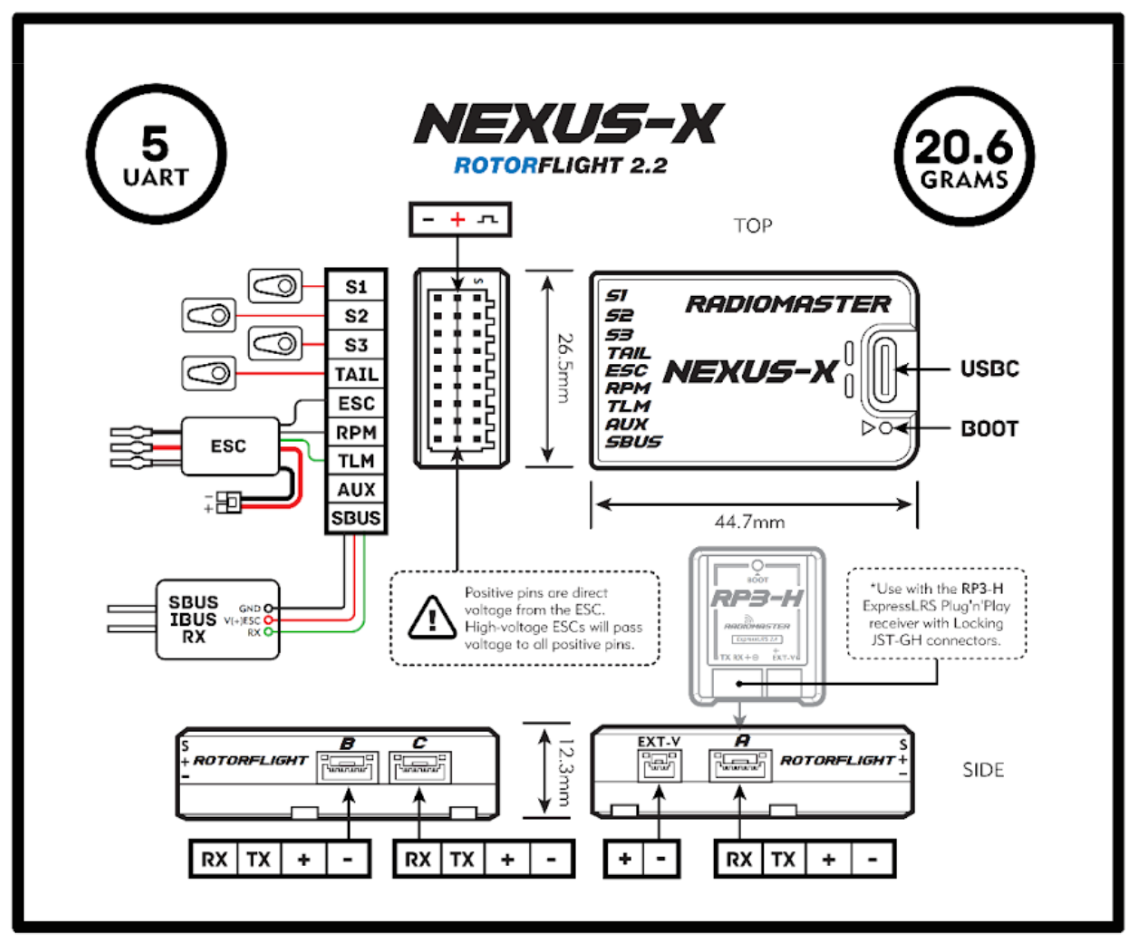

  • Uart: 5 - S.BUS[UART1], TELEM[UART2],PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
  • Servo: S1, S2, S3, TAIL Servos (Up to 12V )
  • Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR AUX: 1
  • Ext voltage input (tele): 3.6-70v
  • Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
  • Voltage Supply(DC): 5 - 16V
  • A-B-C Serial Port Power Output: 5V - 1.5A
  • Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
  • ESC: PWM, Oneshot, Multishot, Dshot
  • Support Tail ESC: 760μs/1520μs Servo
  • Support Tail Motor: Yes
  • Demensions: 44.70x26.50x12.30mm
  • Weight: 20.6g

Features:

  • Optimized for Rotorflight 2.2: Engineered for peak performance and compatibility.
  • Precision Control: STM32F722 MCU and ICM42688P 6-axis gyroscope/accelerometer for superior flight dynamics.
  • Flight Logging: 256MB onboard flash memory for detailed logging and tuning.
  • Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
  • Plug’n’Play ExpressLRS: Solder-free locking connector for RP3-H ExpressLRS receivers (sold separately).
  • More PWM Pins: Additional pins for expanded control in complex setups.
  • CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
  • Tail Servo/ESC Support: Compatible with 760μs/1520μs tail servos and ESCs.
  • 12V Servo Support: Capable of supporting 12-volt servos.
  • Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
  • Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
  • Isolated Power Supplies: Dedicated 1.8V (gyro), 3.3V (MCU), and 5V (interfaces) to minimize noise.
  • USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
  • Compact and Lightweight: Ideal for any helicopter build.
  • Rotorflight Rescue: Standard feature for enhanced safety in emergencies.

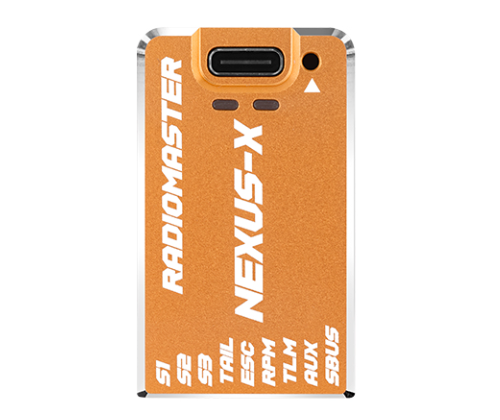

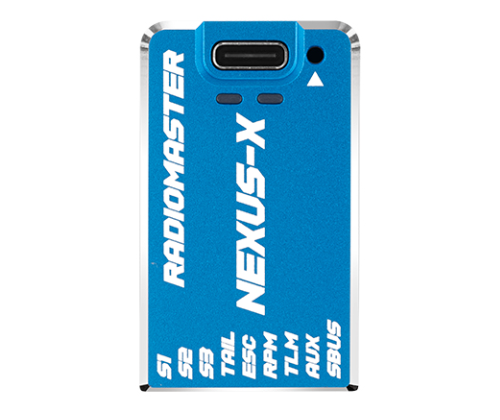

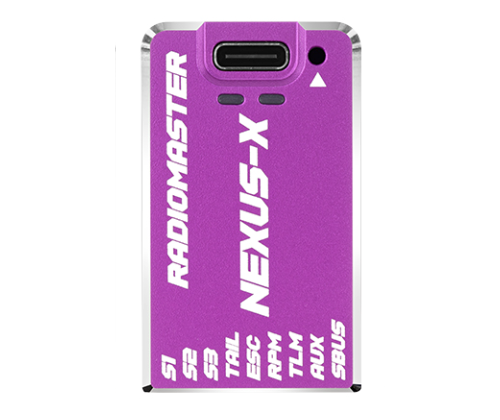

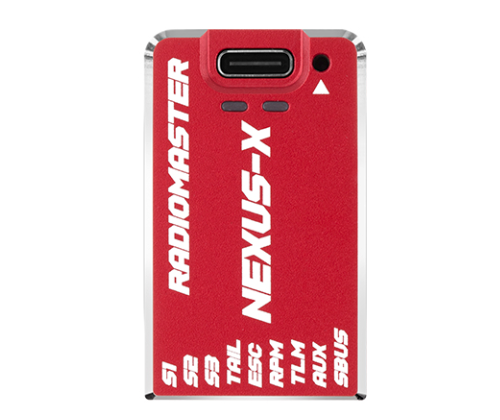

  • Optional Case Color: Grey/Gold/Red/Blue/Purple.

Package Includes:

1 * NEXUS-X Helicopter Flight Controller
3 * JST-GH 4 Wire pigtail cables
1 * JST-GH to Servo Plug (dupont 3 pin connector)
1 * Ultra light-weight and flexible USB-C extender
1 * Type C extension cable
1 * JST-ZH1.5 "DSM" Telemetry cable (Telemetry only does not support DSM Receivers)
1 * Voltage telemetry wire
3 * 3M double-sided mounting tape
2 * Heat shrink tubing
1 * Inventory Card
