RadioMaster AG02 CNC Hall Gimbals Set (Throttle and Centering)
RadioMaster AG02 CNC Hall Gimbals Set (Throttle and Centering)
RadioMaster AG02 CNC Hall Gimbals Set (Throttle and Centering)
RadioMaster AG02 CNC Hall Gimbals Set (Throttle and Centering)
RadioMaster AG02 CNC Hall Gimbals Set (Throttle and Centering)
RadioMaster AG02 CNC Hall Gimbals Set (Throttle and Centering)

RadioMaster AG02 CNC Hall Gimbals Set (Throttle and Centering)

$105.99
SKU: HP0157.0112-SET-RED

Price match guarantee!

Color:Red
Quantity:

RadioMaster AG02 CNC Hall Gimbals for TX15 & TX16S & Boxer

The AG02 gimbals are precision-engineered from machined aluminum, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.

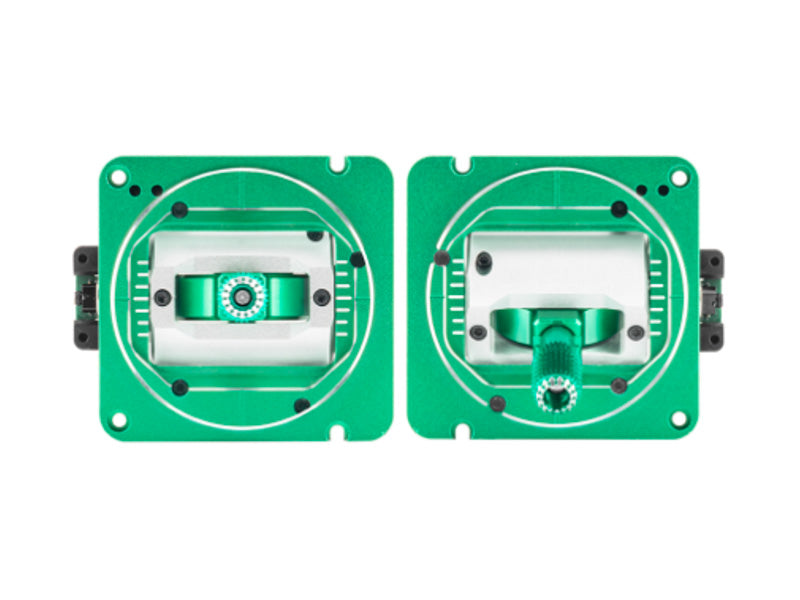

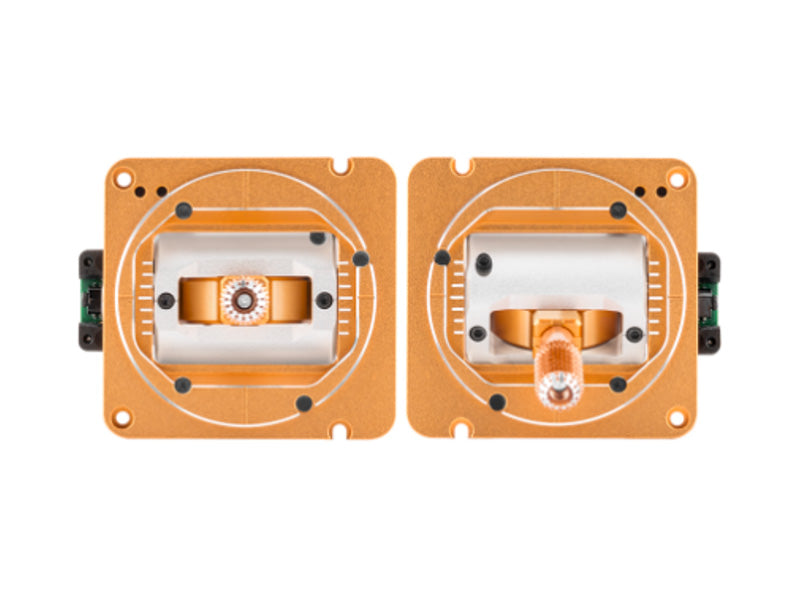

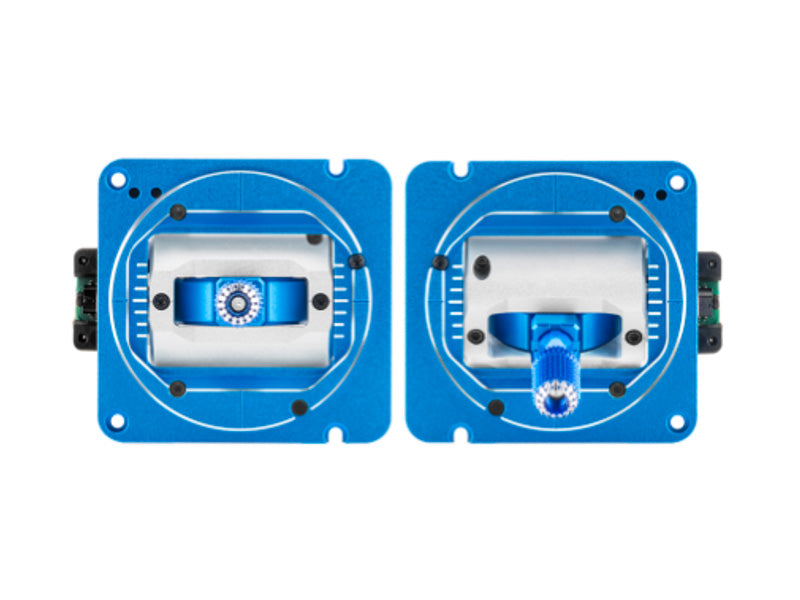

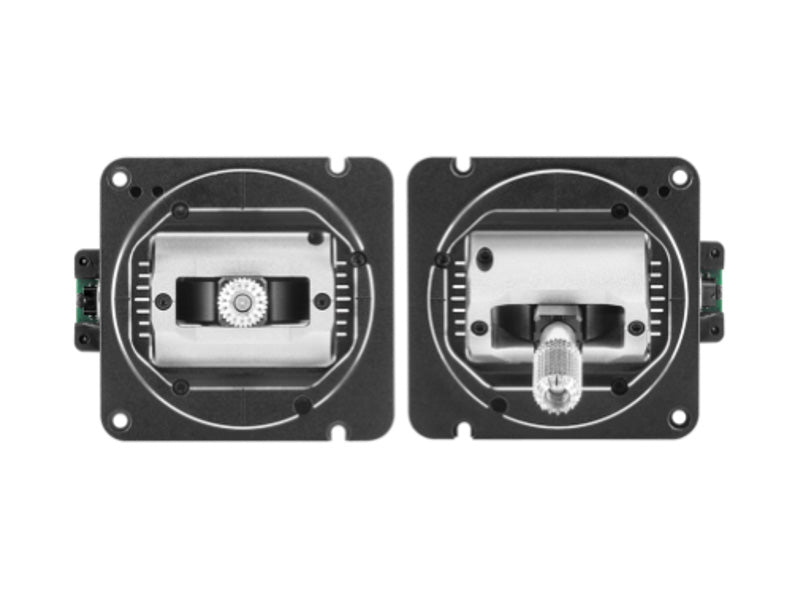

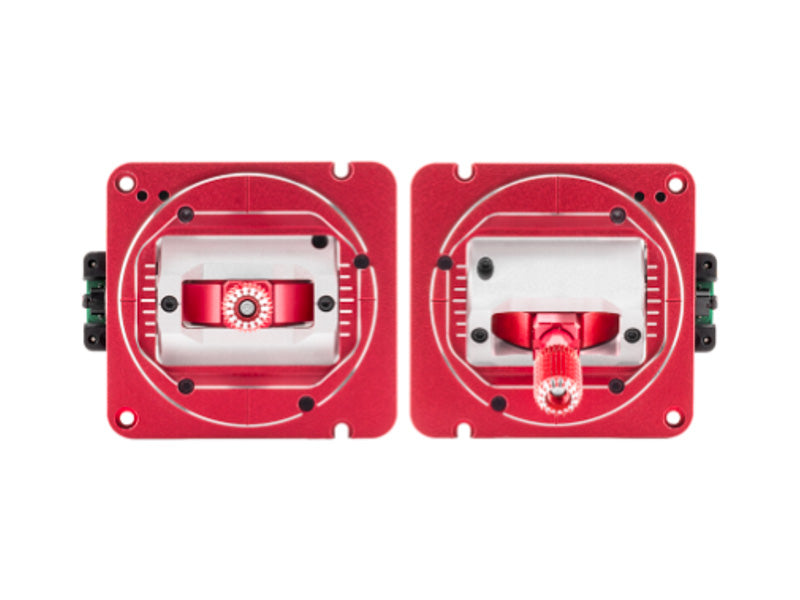

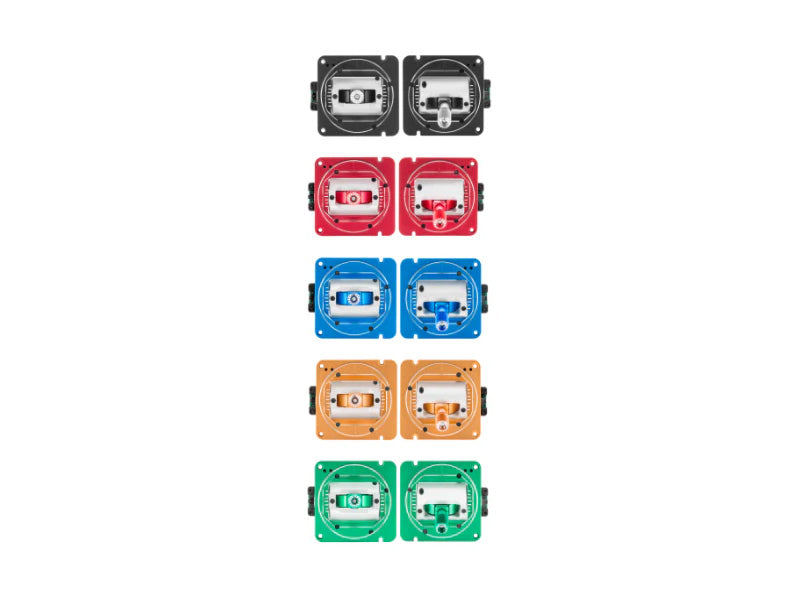

Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy. The anodized aluminum finish—available in Black, Red, Blue, Green or Gold—offers durability with a refined, professional look. Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade path.

Features

  • Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.
  • Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.
  • Adjustable Travel: Vertical and horizontal Travel adjustment for the perfect feel for any pilot.
  • Quad precision bearings：For unparalleled stick feel.
  • 100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.
  • Designed for RadioMaster TX16, TX15, Boxer Radio Controllers

Specifications

  • Item: AG02 CNC Hall Gimbals Set
  • Sensor Type: Hall Analog
  • Operating Voltage: DC 3.3V
  • X-Axis Travel Adjustment Range: 30° – 56°
  • Y-Axis Travel Adjustment Range: 38° – 54°
  • Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported
  • Spring Tension Adjustment Without Disassembly: Supported
  • Quad Ball Bearings: Yes
  • Operating Temperature Range: -20°C to +85°C
  • Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm
  • Weight: 73 g ± 1 g (per unit)
  • Gimbal Sticks: M4

Associated Products

  • TX15 Radio
  • TX15 Max Radio
  • AG02 CNC Hall sensor gimbals
  • LED Gimbal Rings
  • 18650 3200mAh 3.7V Battery
  • 21700 5000mAh Battery
  • Sticky360 Gimbal Stick Ends

Package Includes

  • 1 Pair of AG02 CNC Hall Sensor Gimbals
  • 2 * Hard Tension Springs
  • 1 * GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)
  • 4 * PB2.3*10 Mounting Screws
  • 1 * Hex Wrench
  • 1 * User Manual
