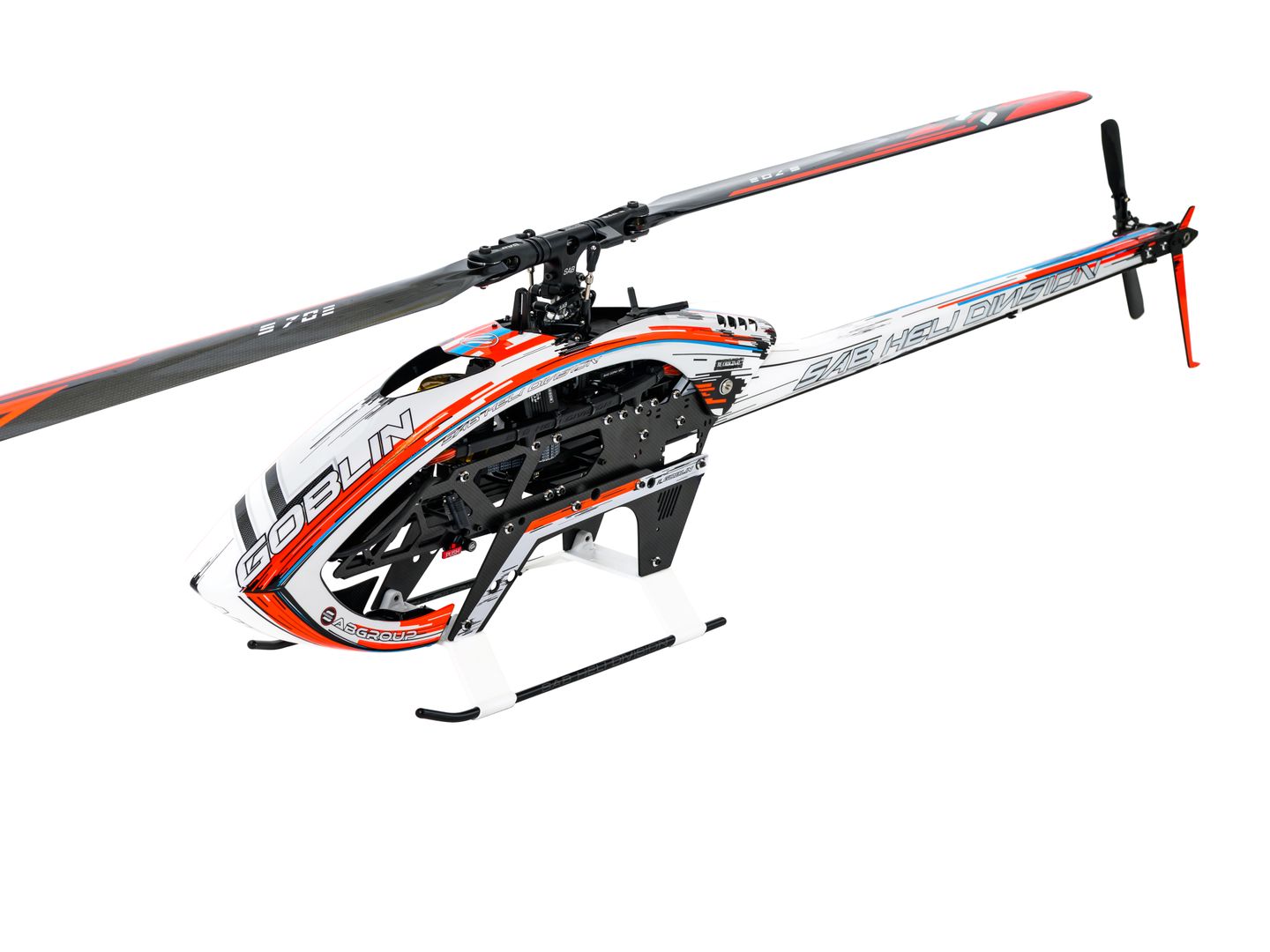

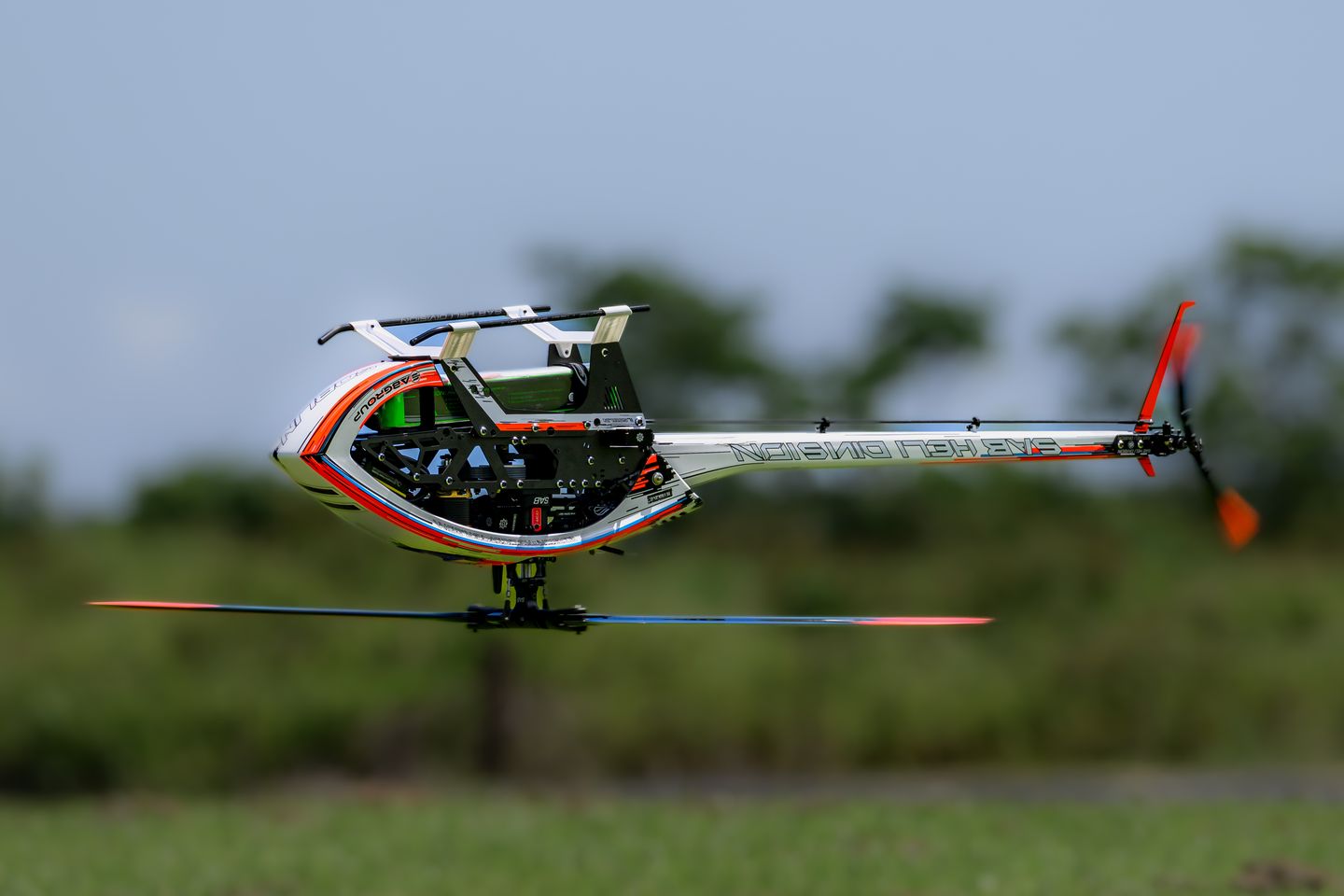

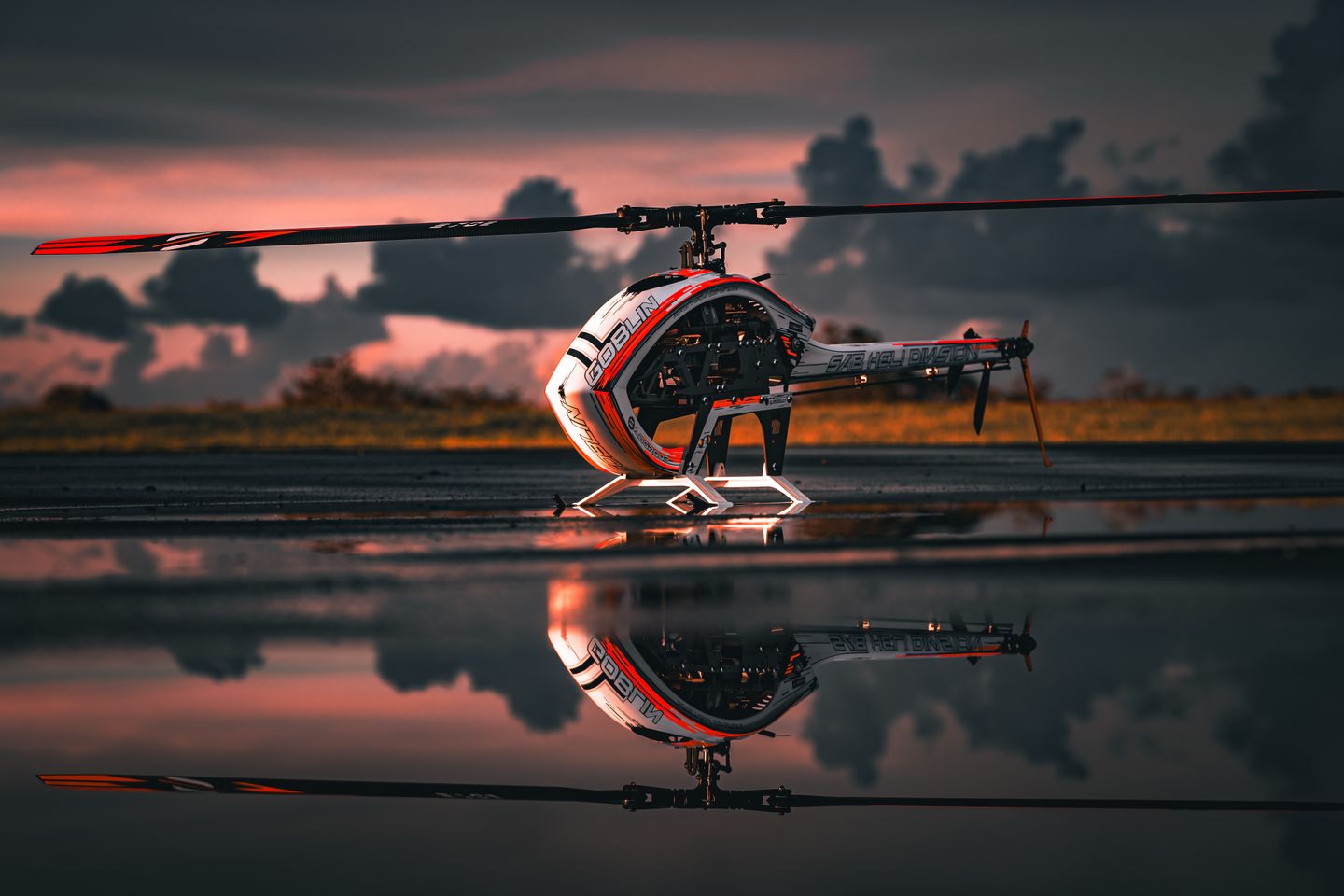

ilGoblin Piuma (PRE-ORDER)

The new ilGoblin Piuma 2025 is the result of a carefully engineered design that ensures the stiffness and reliability typical of standard 700-class models, while maintaining a strong focus on lightness and structural simplicity.

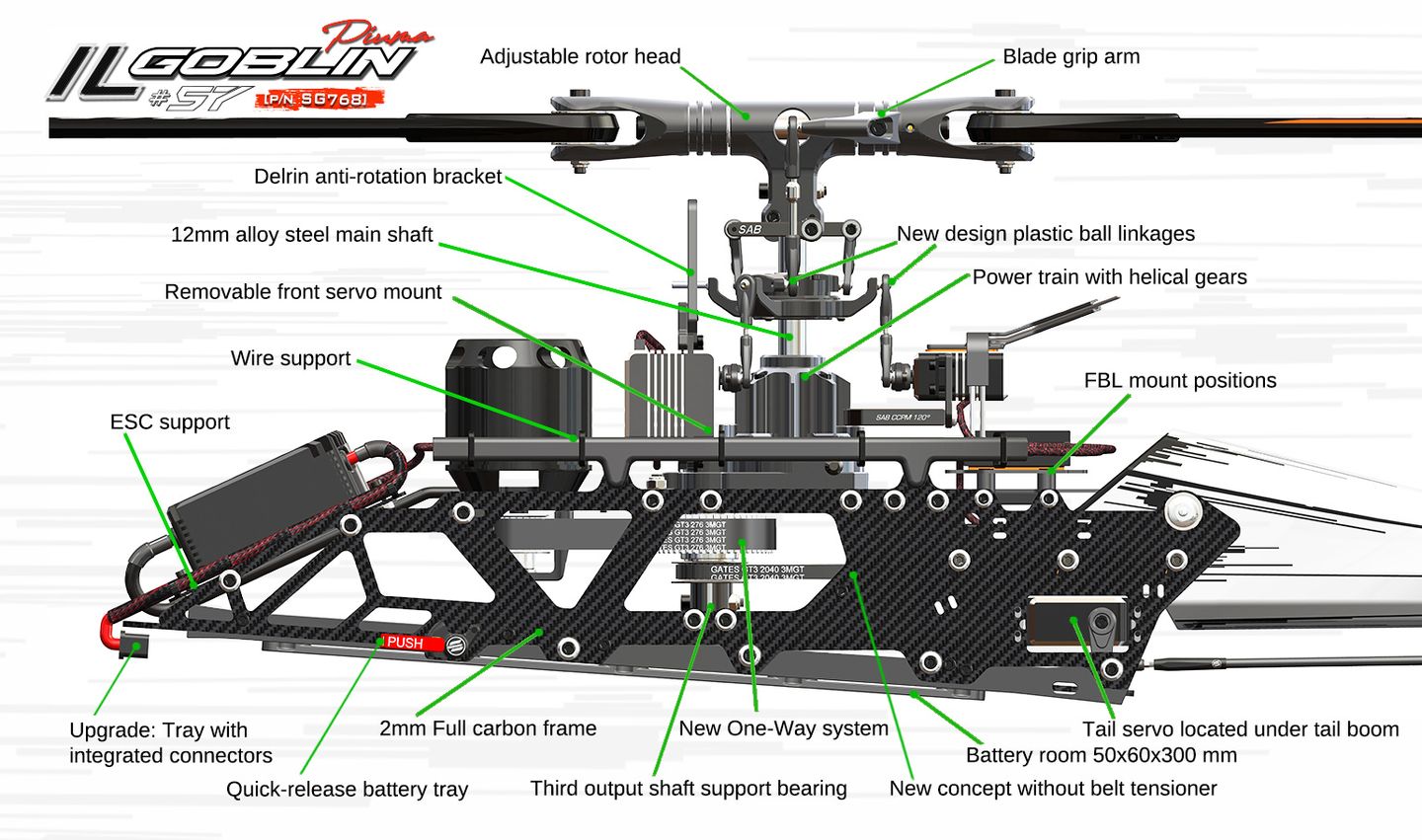

Equipped with a 12 mm main shaft, a 10 mm spindle, and a main gear shared with the ilGoblin Pro, the ilGoblin Piuma stands out as a model that is both solid and lightweight.

Thanks to a smart and modular design, the ilGoblin Piuma can be easily converted into a nitro version by adding a few specific components, giving pilots the freedom to test both power options—electric and nitro—with minimal effort.

As always, the model features original and innovative graphic schemes and offers the option to install a standard aluminum tail boom, adding even more versatility to this new Goblin release.

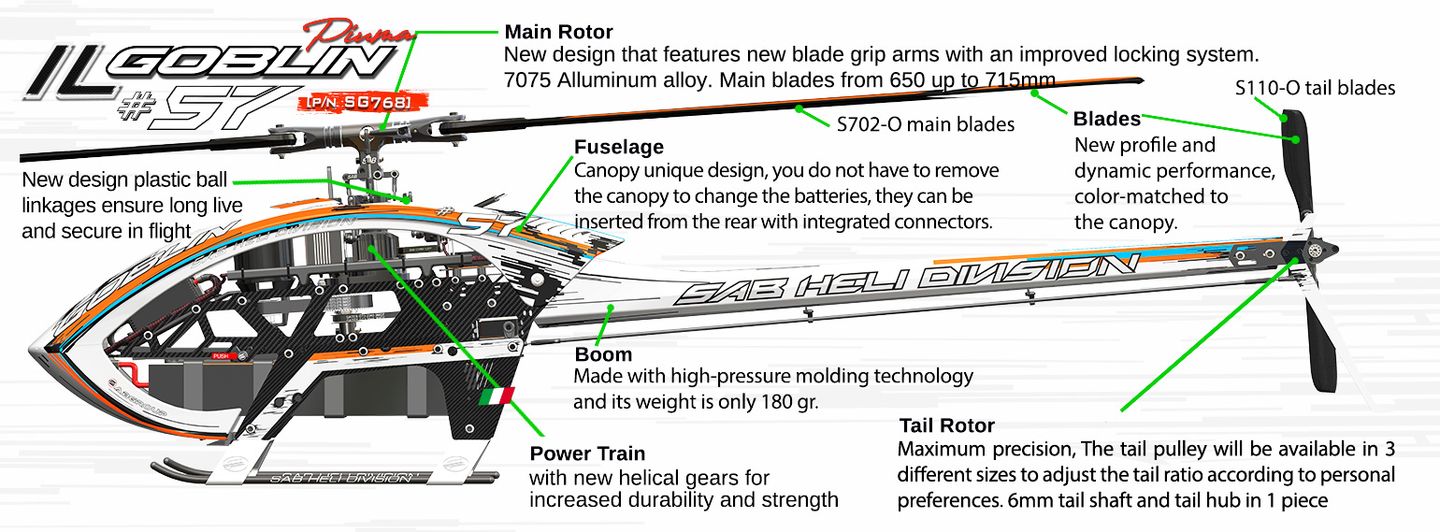

Main Rotor:

• Blades grip size: same as ilGoblin Pro.
• Main shaft: 12 mm, Tail shaft: 6 mm, Spindle: 10 mm, Bearings: 10x19x5 mm.
• Optional pivot shaft for the spindle allows fine-tuning of head rigidity and maximum movement.

Tail Rotor:

• Shaft and hub machined from a single piece for maximum precision.
• Tail pulley available in three different sizes to adjust tail ratio based on personal preference.

Tail Boom:

• Constructed using high-pressure molding technology.
• Total weight: only 180 grams.
• Made of molded carbon for strength and lightness.


Canopy & Blades:

• Unique canopy design allows battery insertion from the rear — no need to remove the canopy.
• Integrated connectors make battery changes fast and convenient.


Specifications:

• Airframe weight: 1995 g (without blades, motor 4525, 180A ESC, servos, FBL.)
• Main blade length: 650–715 mm.
• Tail blade length: 105–115 mm.
• Cyclic servos: Standard size (40 mm.)
• Tail servo: Standard size (40 mm.)
• Main rotor ratio: 11.8 to 8.8 : 1 (21T pulley included = 10.1 : 1.)
• Tail rotor ratio: 4.88–4.66 : 1 (23T pulley included = 4.66 : 1.)
• Power system: Supports 6S–12S setups, Motor KV range: 480–560 / 950–1100 KV.
• Battery compartment: 50 x 60 x 300 mm.
• 21T motor pulley (other pulley sizes available.)
• 1 battery tray.
• S702-O Orange main blades (700 mm.)
• S110-O Orange tail blades (110 mm.)
