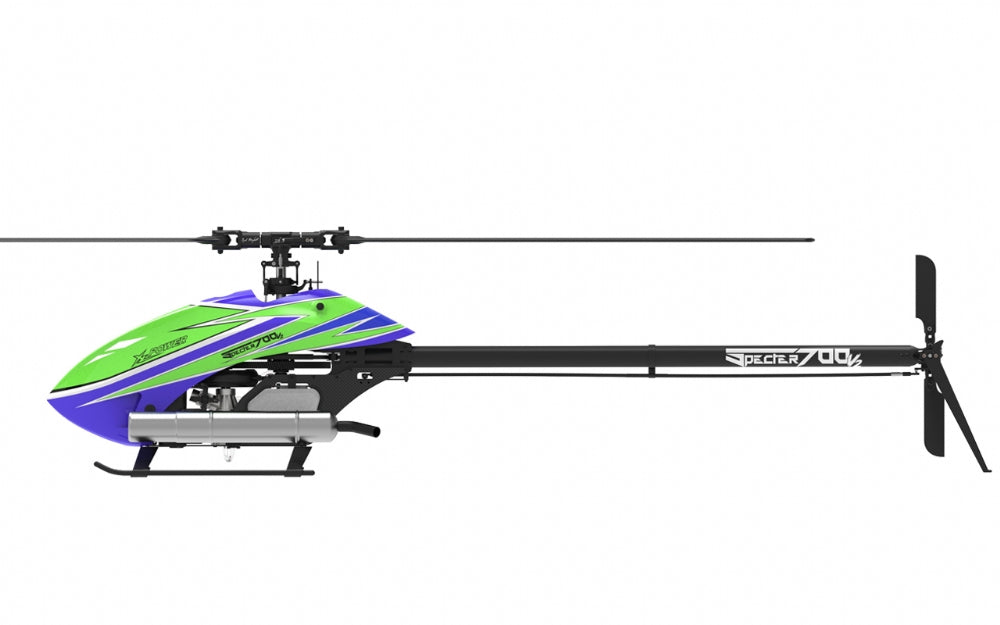

The Specter 700 Ultimate 3-Blade is XLPower’s flagship evolution of precision 3D helicopter engineering, built for pilots who demand the ultimate in cyclic authority, tail hold, and in-air stability. Based on the proven Ultimate platform, this version adds a purpose-designed tri-blade head system, refined control geometry, and reinforced mechanics to deliver a flight feel that’s tighter, faster, and smoother than ever before.

Every component, from the three-blade head block to the balanced tail system, is optimized for the unique dynamics of multi-blade flight. The result is a model that tracks like it’s on rails, carves through maneuvers with surgical accuracy, and still maintains that unmistakable XLPower agility.

From the one-piece CNC motor mount to the tri-point head damping system, every detail is crafted for strength, consistency, and pilot confidence under the extreme forces of modern 3D flight.

Key Features

Precision 3-blade head system for faster cyclic response, improved disc efficiency, and ultra-stable flight characteristics

Reinforced main shaft and spindle design to handle the increased loading of tri-blade performance

Optimized swash-to-rotor geometry (1:1 ratio) for perfectly linear control response

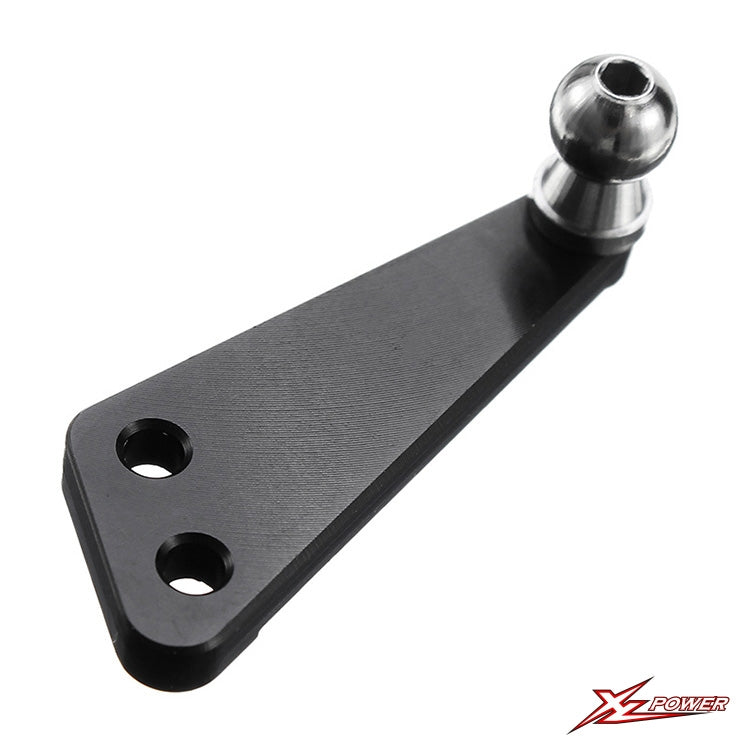

Upgraded tail assembly with revised lever geometry for superior yaw authority and consistency

Enhanced frame bracing and motor mount integration to reduce torsional flex during high-torque maneuvers

Refined damping and bearing tolerances for smoother mechanical feel and reduced vibration

Quick-release battery tray and easy maintenance layout for faster field turnaround

Technical Specifications

Length w/o main blades: 1,383 mm
Overall height: 351mm
Frame width: 217 mm
Weight (RTF): approx. 5,600 g
Main blade length: 685 – 716 mm
Tail blade length: 95 – 115 mm
Main shaft diameter: 15 mm
Feathering shaft diameter: 10 mm

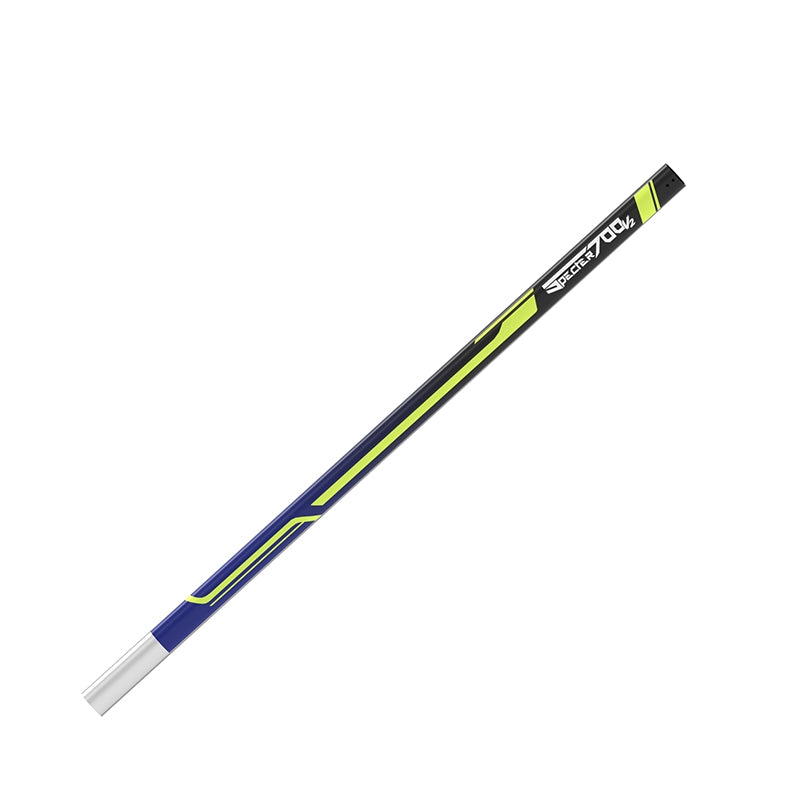

Tail boom diameter: 32 mm
Tail ratio: 4.76 : 1（5.0Optional）

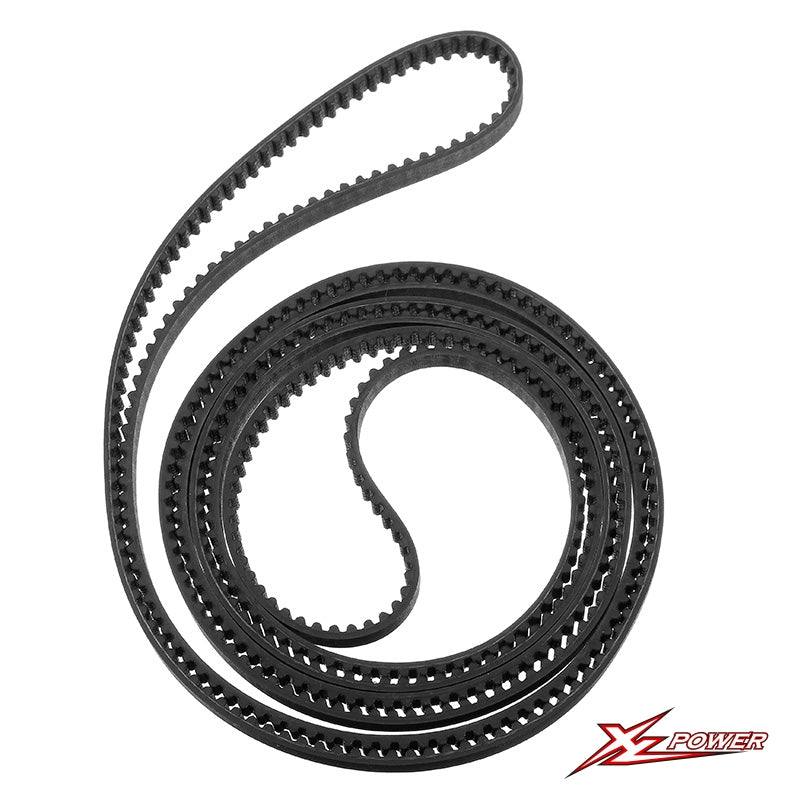

Drive system: Belt-driven tail, helical main gear
Gear ratio: 9.636 : 1(10.6-8.15 Optional)
Motor mount: One-piece reinforced CNC aluminum design
Frame structure: Multi-layer carbon fiber with strengthened center section
Swashplate geometry: 120° CCPM, 1:1 control ratio
Power system: 12S Li-Po (recommended)
ESC rating: 200 – 300 A class
Motor class: 4525 / 4530 size
Head & tail material: 7075-T6 aluminum
Gyro mount: Rear-mounted vibration-isolated platform
Battery tray: Quick-release latch system
